Description

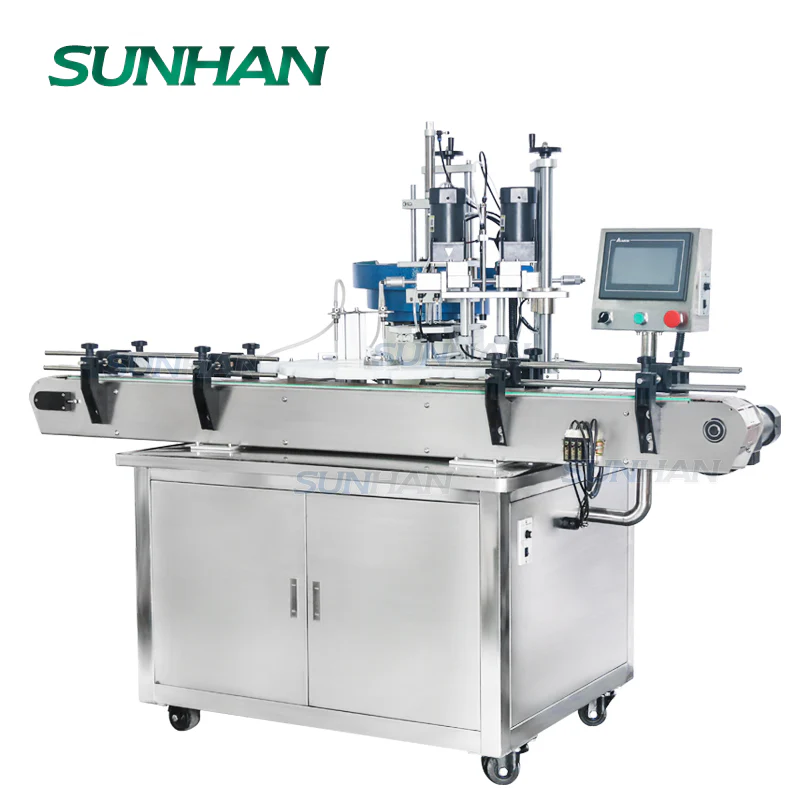

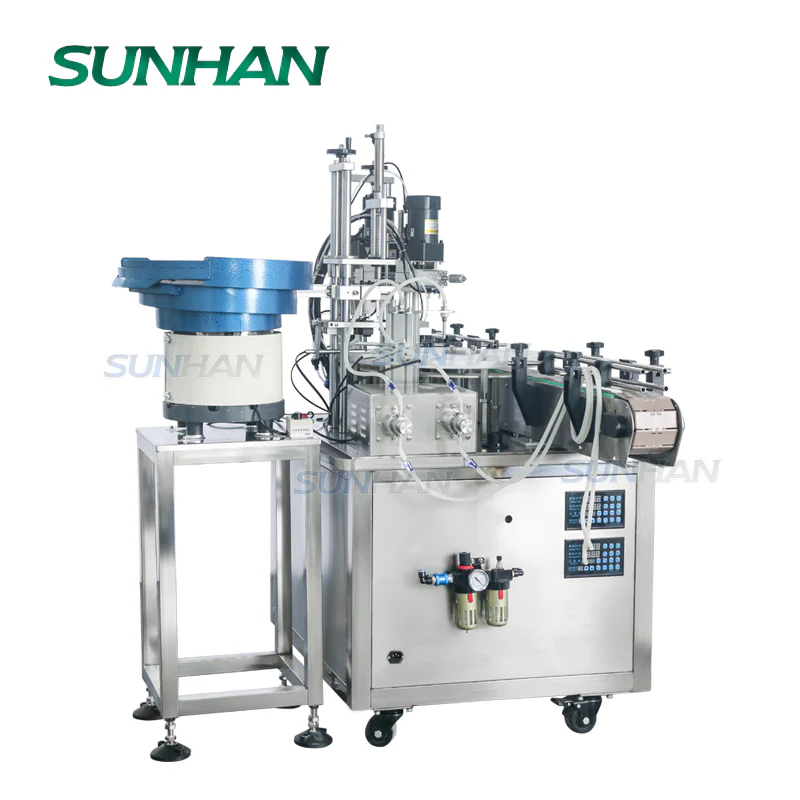

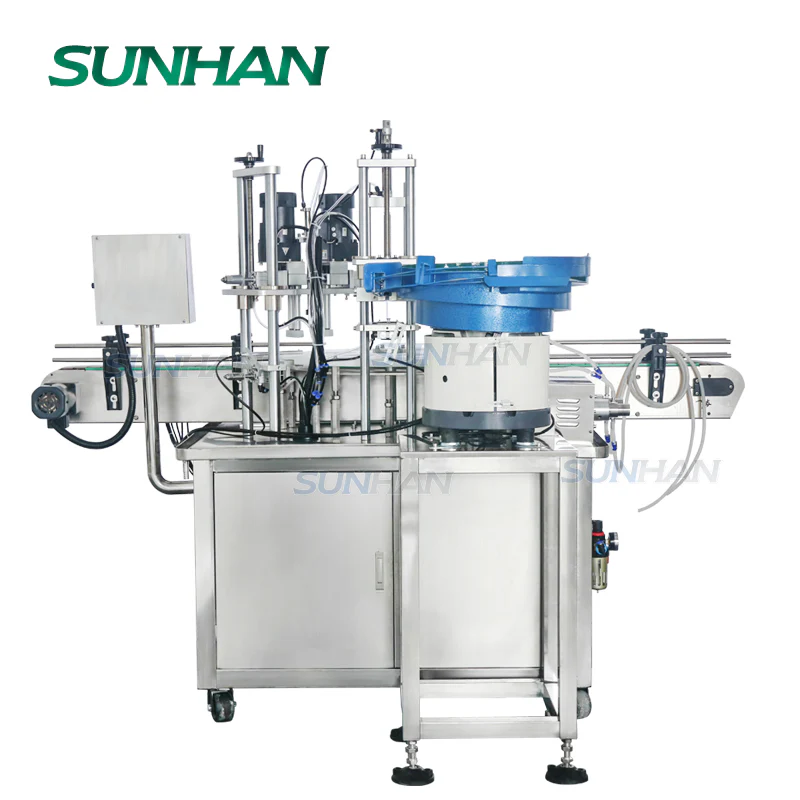

This 3 in 1 liquid filling capping machine can fill liquid, feed caps and cap bottles automatically. Reasonable design saves working space and production cost. The rotary plate of the machine can be customized according to product diameter. This filling capping machine is widely used in daily chemicals, cosmetics industries.

Main Feature

▶Multifunctional, it can fill liquid, feed caps and cap bottles at one machine.
▶The rotary dish can be customized according to bottle size.
▶High working speed, it can fill about 40 bottles/min at max.

Parameter

• Machine model:SH-AFC1

• Machine voltage:AC220V/110V 50-60HZ

• Bottle diameter:25-50mm（Can Customize）

• Bottle height:50-350mm

• Working speed:20-35 bottles/min.(depending on liquid,bottle and caps)

• Max power:300W

• Air pressure:0.4-0.6MPa

• Capping torsion:4-9kgf/cm

• Conveyor size:About 2000*100mm(L*W)

• Machine size:About 1015*800*1560mm

• Machine weight:About 341kg

• Package size:About 2210*980*1740mm

• Package weight:About 411kg
