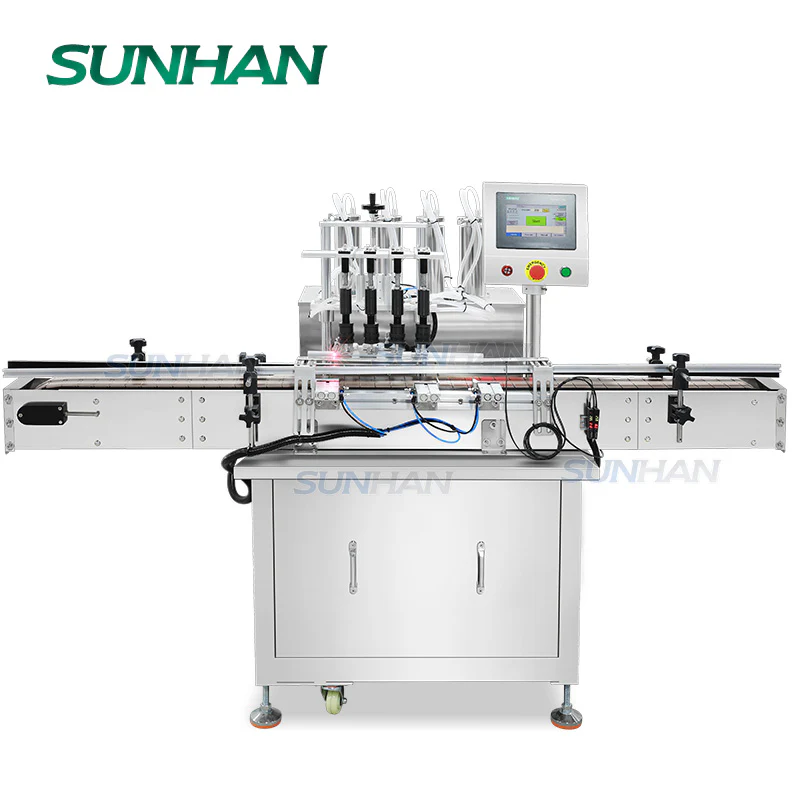

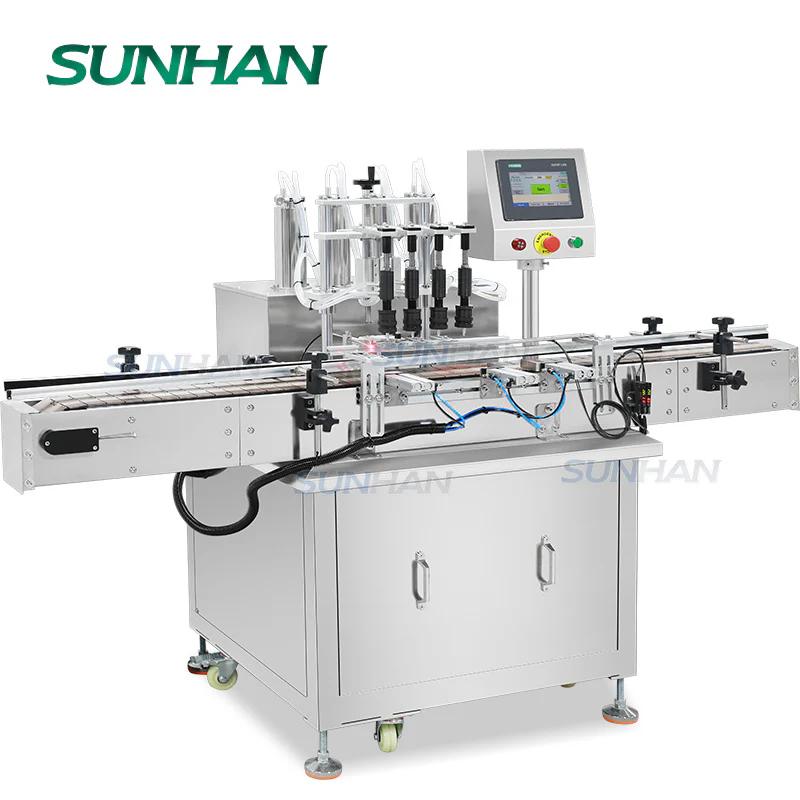

Automatic 4 Heads Vacuum Eyewash Cosmetic Fragrance Perfume Essential Oil Spray Bottles Liquid Filling Machine

Description

This vacuum liquid filling machine can prevent the fragrance of liquid from spreading, this is especially good for perfume filling. Based on the same level working principle, the product is always kept at the same level regardless of the size of the bottle. High filling accuracy. Multiple filling nozzles can be customized according to production needs.

Main Feature

▶Vacuum filling, this can ensure the fragrance will not spread.
▶Multiple filling nozzles can be customized.
▶Can work with automatic capping machine to realize automated production

Parameter

• Machine Model:SH-VTZL4A

• Filling head:4 Head

• Air pressure:0.5-0.8MPa

• Liquid level accuracy:±1mm

• Viscosity range:The maximum applicable viscosity is 20Cps (static viscosity)

• Working Speed:20-30 Bottles/Minute

• Bottle height:≤250mm

• Bottle Opening Size:≤φ8mm-φ28mm

• Adjustable liquid level (from the bottle mouth):15-50mm

• Pumping rate:5.5L/MIN

• Machine size:About 2020*800*1410mm

• Package size:About 1330*2105*1670mm

• Package weight:About 335kg
