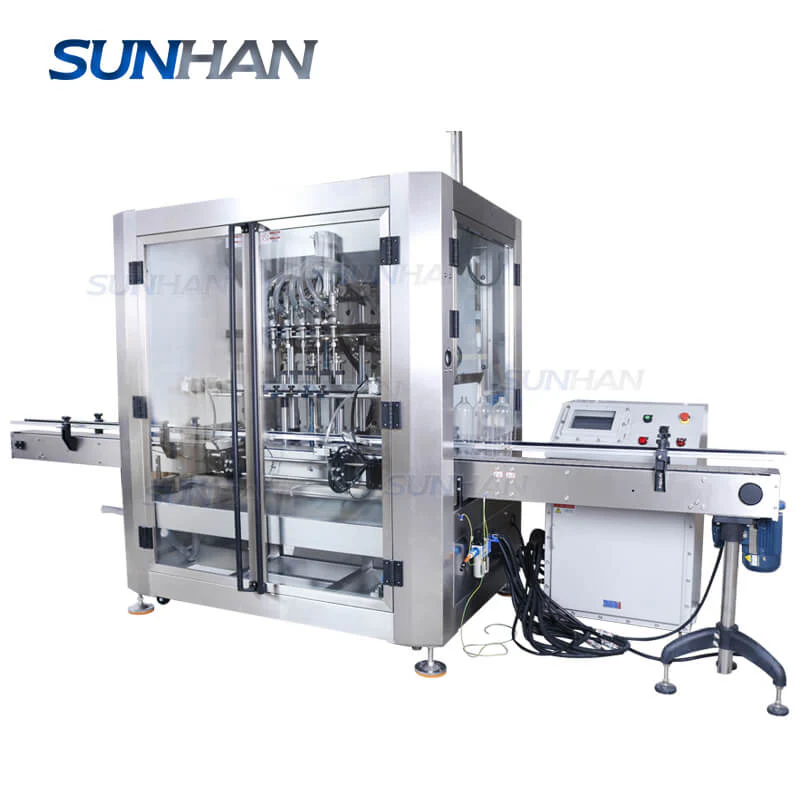

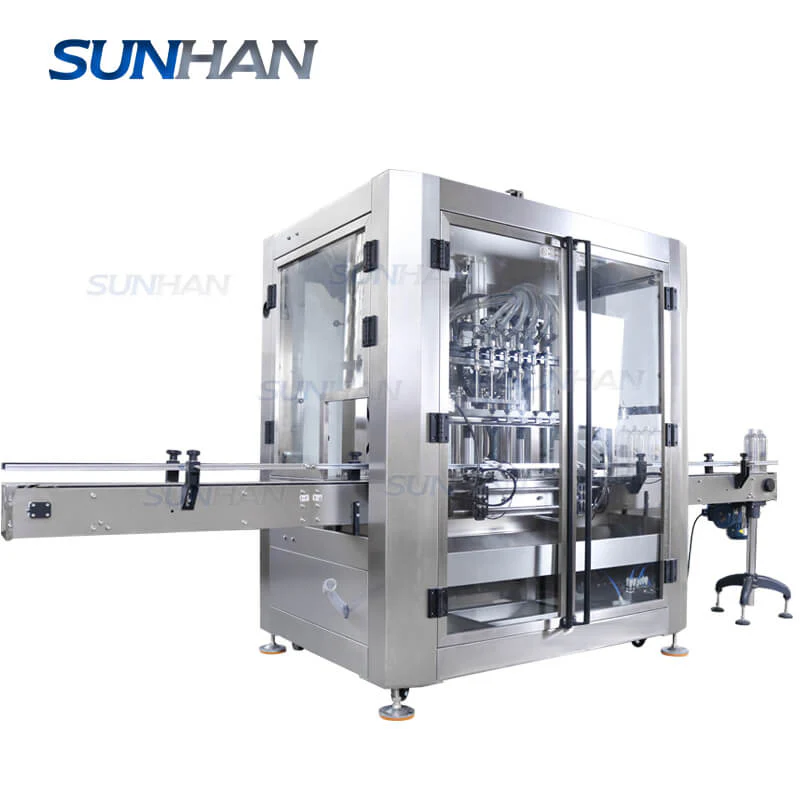

Automatic Explosion Proof Hand Sanitizer Alcohol Chemical Liquid Paste Jerry Cans Filling Machine

Description

This explosion proof quantitative filling machine can enter certain number to set filling volume, it is no need to adjust filling time/speed to control the filling volume, this makes it more convenient to operate. It is suitable for filling Inflammable liquids and paste like alcohol, it is widely used in food, beverage, cosmetics and daily chemical industries.

Main Feature

▶Suitable for filling Inflammable liquids and paste like alcohol.
▶Quantitative filling, operator can enter the certain number to realize accurate filling.
▶High working efficiency, can pack 20-40 bottles/min.

Parameter

Machine Power:3KW
Filling Range:100-1000ml(can be customized)
Working Speed:20-40bottles/min(based on 500ml )
Filling Accuracy:±1%
Air Pressure:0.8Mpa

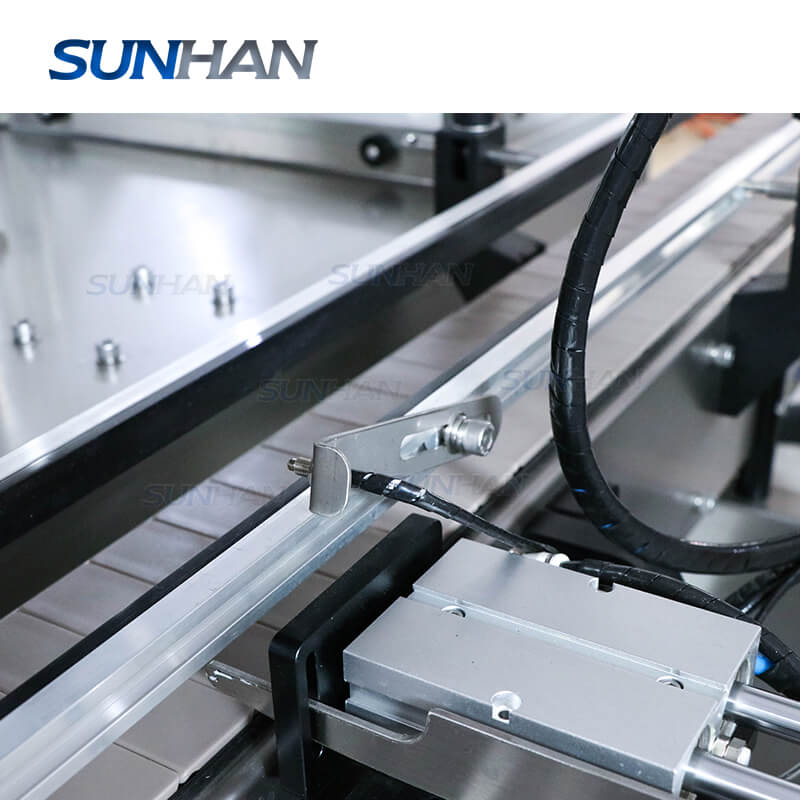

Conveyor Size:1140mm*100mm(L*W)

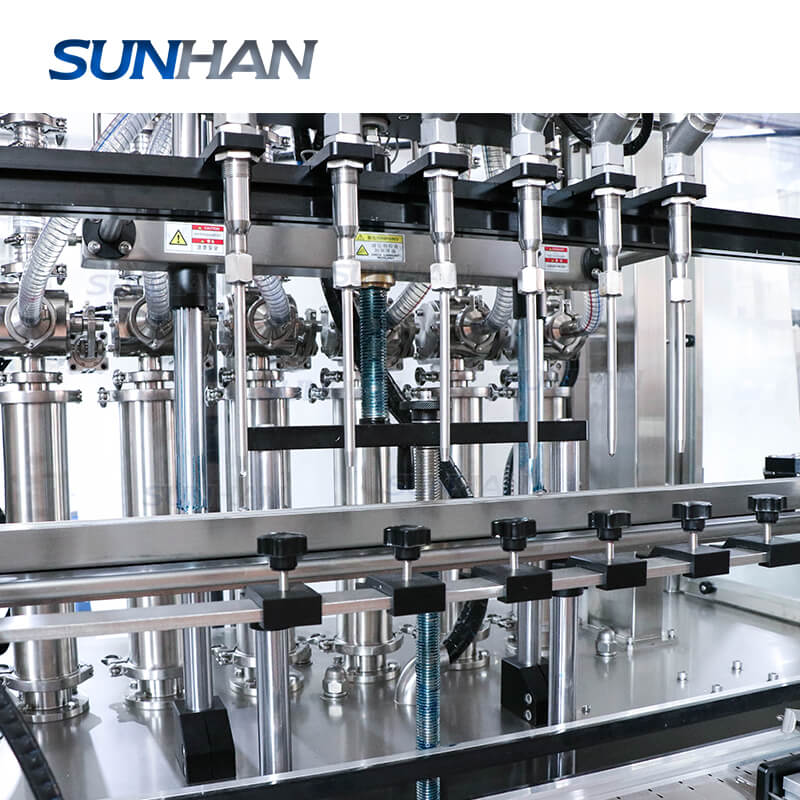

Filling Nozzle Diameter: OD 8mm
Package Size:2140*2110*1250mm+950*630*1200mm(machine +electric control box)
Package Weight: About 550kg+100kg(machine +electric control box)
