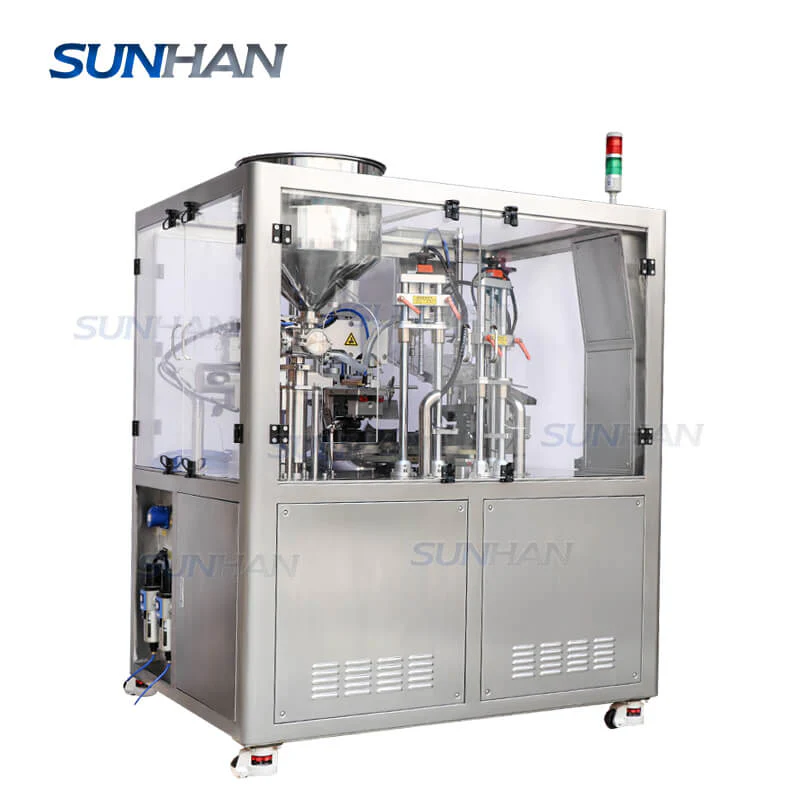

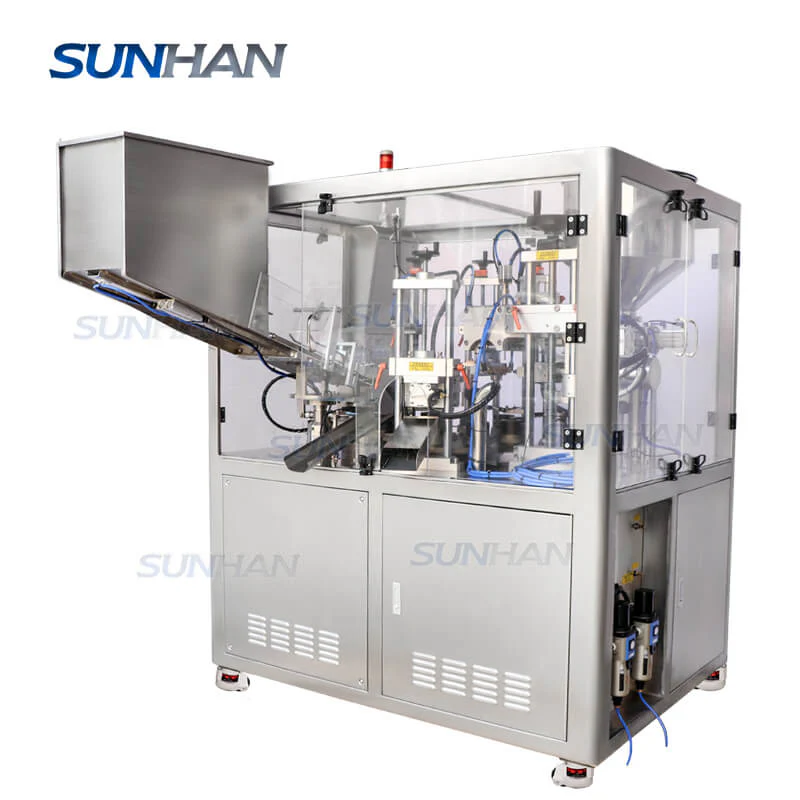

Automatic Hand Cream Facial Cleanser Ointment Soft Tube Filling Sealing Machine

Video



Description

This soft tube filling sealing machine is designed for filling thick liquid/paste into soft tube and sealing them, extra coding function can be realized. This ultrasonic filling sealing machine is suitable for hand cream, toothpaste, facial cleanser in cosmetics and daily chemical industries.

Main Feature

▶ Suitable for fling liquid or paste like cream, shampoo, body lotion, etc.
▶ The tube holder can be customized according to tube size.
▶ Can realize filling, ultrasonic sealing, date coding and trimming at one machine.

Parameter
Voltage:220V/110V 50-60Hz
Power:2.6KW
Hopper Capacity:30L
Filling Range:6-60ml / 10-120m l/ 25-250ml
Filling Accuracy:±1%
Sealing Speed:18-28pcs/min
Sealing Diameter:16-50mm
Sealing Height:70-210mm
Sealing Method:Ultrasonic Sealing
Ultrasonic Frequency:20KHz
Air Pressure:0.6Mpa
Application:Aluminum-plastic soft tube/Plastic soft tube
Machine Material:Stainless Steel
Machine Weight:About 410kg
Machine Size: About 1615*1400*1590mm
Package Weight: About 555kg
Package Size: About 1610*1760*1860mm
