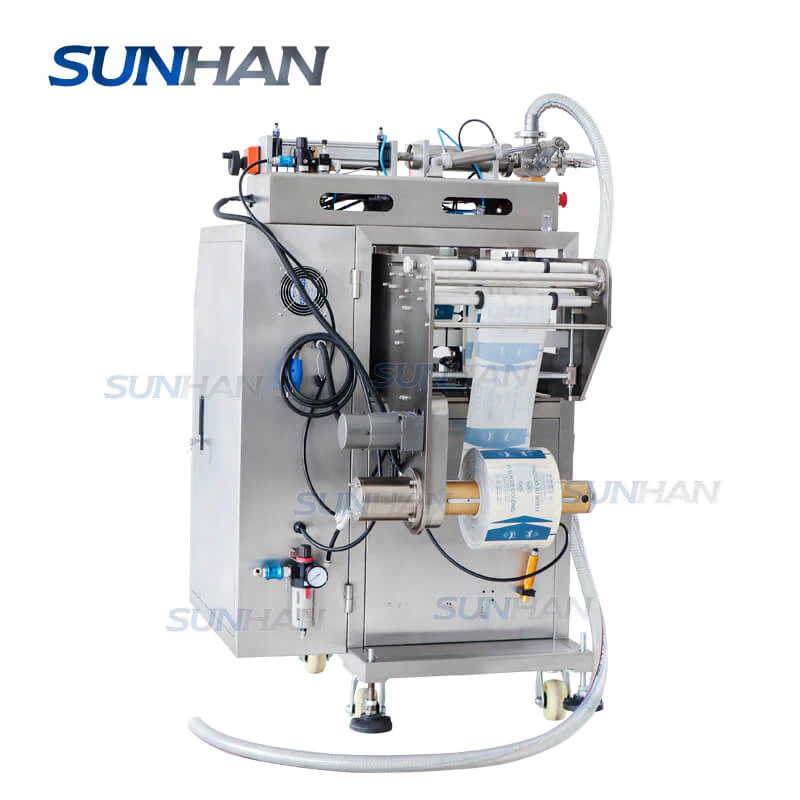

Automatic Vertical Form Bagged Juice Soymilk Water Liquid Filling Back Side Sealing Machine VFFS Packing Machine

Description

The VFFS liquid packing machine works by forming a pouch or tube of packaging material (such as plastic film) from a roll, filling it with the liquid product, and then sealing and cutting the tube to create individual pouches or bags. The filling process is controlled by piston pump, it is suitable for  juice, milk, oil, sauces, and more.

Main Feature

▶ Can be customized for different kinds of sealing type like three sides sealing, four sides sealing
▶Different filling range can be chosen according to production need
▶ Equipped with PLC touch screen control panel, working parameter can be adjusted easily

Parameter
Machine voltage:110/220/380V 50-60HZ
Suitable film: OPP/CPP OPP/PE NILO PE
Filling range:50-500ml(offer different filling range)
Package speed:5-60bags/min
Width of film: Max 320mm
Size of package bags:(W)50-150mm*(L)50-400mm
Sealing method: Back side/Three sides/Four sides(Customize)
Filling accuracy:≤0.3-1%
Film thickness:0.06-0.12mm
Air Pressure:0.65Mpa 0.7m³/min
Lifting height: About 1200mm
Conveying speed:50-300mm/s(adjustable)
Machine size: About 830*1080*1450mm
Machine weight: About 289kg
